GRE VPN Endpoint Migration

A site-to-site GRE tunnel has just moved to new ISP addresses. The tunnel comes up, but the two sites still can't reach each other's services. Find what the migration missed.

Download .unlNo lab server? Practise it in your browser

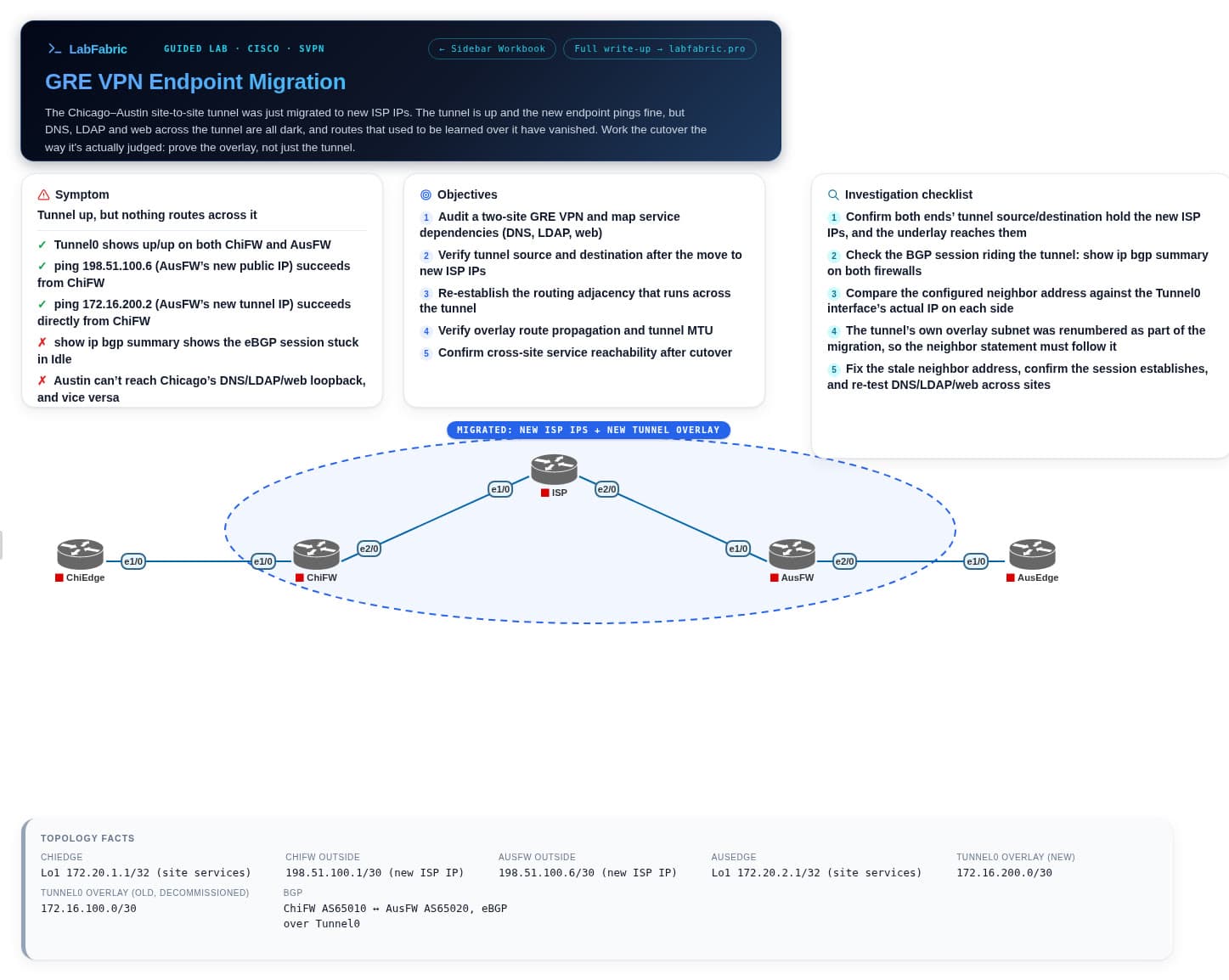

The lab as it opens in PNETLab: two sites joined by a GRE tunnel across the ISP, after the move to new public IPs.

What you'll practise

  • Audit the two-site GRE topology and find the loopbacks that stand in for each site's services
  • Verify tunnel source and destination after the move to new ISP IPs
  • Re-establish the routing adjacency that runs across the tunnel
  • Verify overlay route propagation and tunnel MTU
  • Confirm cross-site reachability between the service loopbacks after cutover
