DHCP Snooping: Trust Boundary Misconfiguration

What you'll practise

• Confirm DHCP snooping is enabled consistently across a small switched network
• Read show ip dhcp snooping and identify a switch's trusted interfaces
• Use show ip dhcp server statistics to prove the server is answering
• Recognize a DHCP snooping trust boundary problem from those two outputs together
• Apply ip dhcp snooping trust on the correct uplink and verify the fix

Set it up

1. 1

   Have the node image ready

   Images are not included. The file expects your own licensed copy of:

   • i86bi_Linux-L2-Adventerprisek9-ms.SSA.high_iron_20190423.bin

   If your copy has a different name, open each node's Edit dialog after importing and pick your image from the list.

2. 2

   Copy it to the server and fix permissions

   Replace <your-server> with the IP address or hostname of your EVE-NG or PNETLab server.

   $ scp dhcp-snooping-lab.unl root@<your-server>:/opt/unetlab/labs/
   # then, logged in to the server:
   $ /opt/unetlab/wrappers/unl_wrapper -a fixpermissions

3. 3

   Open it and start the nodes

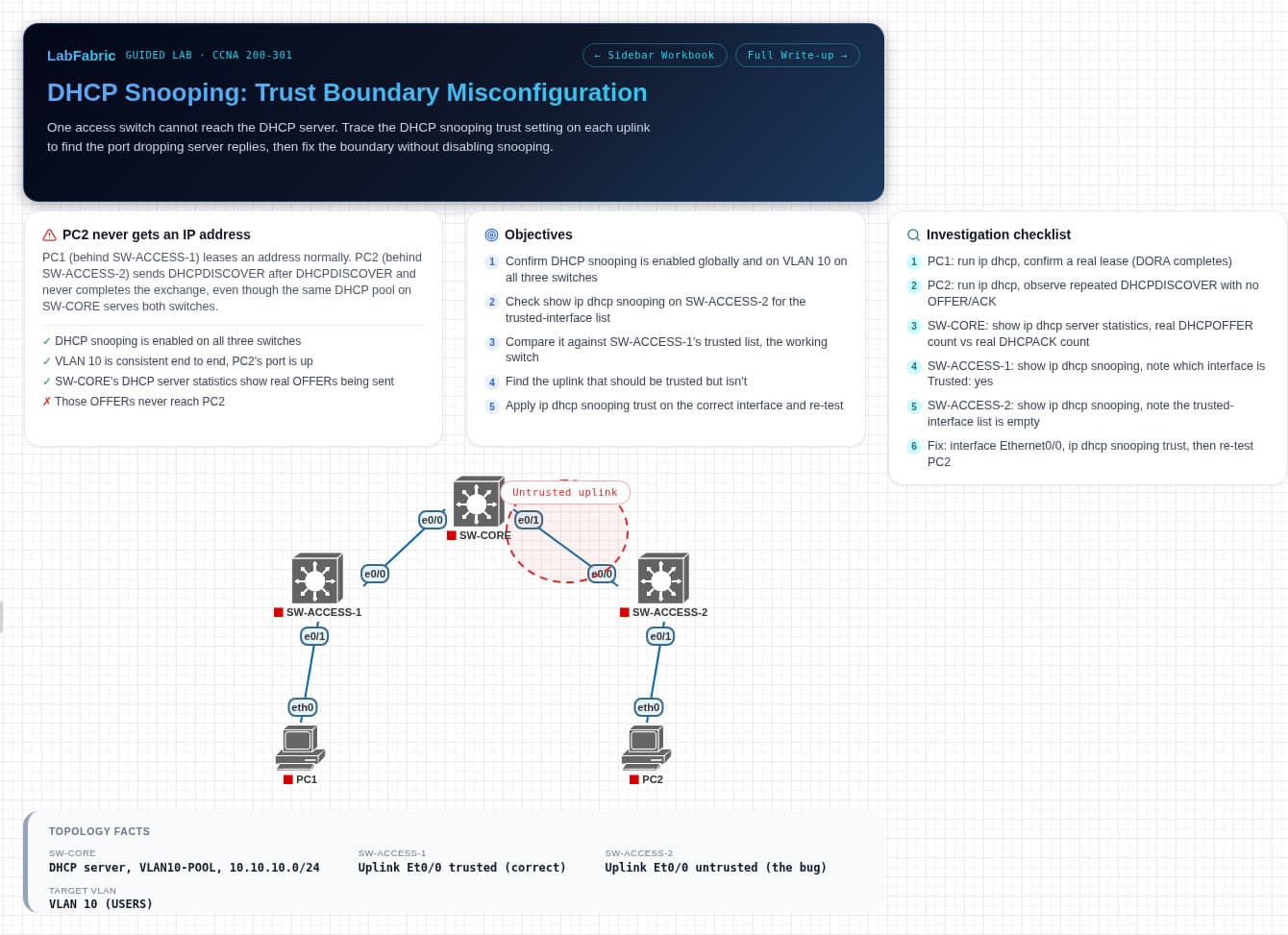

   The canvas notes list the objectives, and the workbook walks through the fix.
